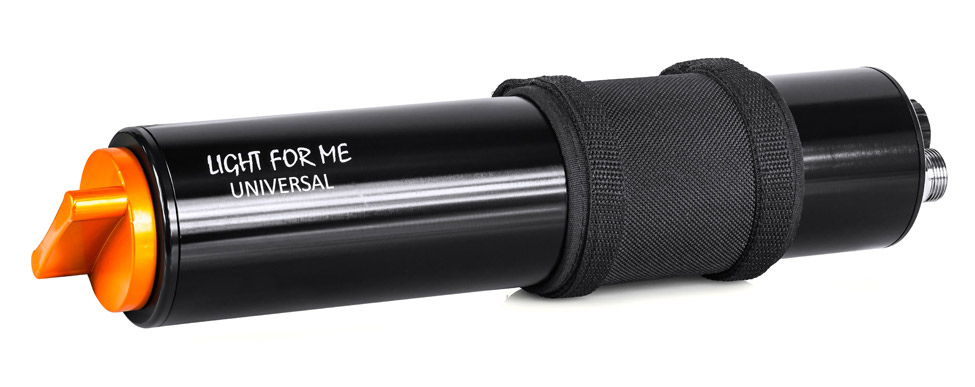

UNIVERSAL BATTERY CANISTER

Description

Usage

Universal Battery Canister is dedicated to be used with light-for-me light heads equipped with RCA connector as part of underwater main light.

Battery pack

Universal Battery Canister does not contain any battery pack. It allows user to choose the battery pack of their preference bearing in mind the internal dimensions of the canister and power drawn by the light head. Preferred battery packs: Lithium-ion of 11.1 or 14.4V. Capacity of the battery pack: depends on the power of the light head.

Built

ACCU container is built from anodised aluminum (tube) and delrin (top and bottom lids). RCA ports are made from stainless steel.

RCA connection

Canister is equipped with two RCA connection ports that can be wired directly to the battery pack. It comes with one RCA port cap that protects the RCA port and battery pack if one port is unused.

Maintenance

Accu container requires minimum but regular mentenance after diving. RCA ports need drying and sealing orings inside them need greasing.

How to calculate burntime

In order to calculate burn time of the light head, you need to know the V and Ah of the battery pack and W of the light head. Let’s take, as example, battery pack 14.4V 11.25Ah and 7XML RCA head that takes 84W:
To calculate Watt-hours of the battery pack: 14.4V x 11.25Ah = 162Wh To check the max burn time: 162Wh / 84W = 1.9h*

*Battery packs have built in protection module that will not allow the battery to be drained, therefore the calculated burn time is only for illustrative purposes.

Content of the set

  • Battery canister with codura sleeve and covered stainelss steel jubilee clips
  • One RCA port cap
  • RCA connector for charger
  • ACCU wrench – a smart tool for opening the bottom lid of the canister. ACCU wrench is made from anodised aluminum and due to high precision cnc machining, it perfectly fits the bottom lid. Colours – chosen randomly. It’s easy to use – simply place the wrench in place on the bottom lid and turn left until the lid twists completely off the tube.

Photos

Tech specification

Accu outer length 320mm
Accu outer diameter 75mm
Accu max inner length 270mm
Accu inner diameter 68mm
Accu weight 0,99kg
Max operating depth 100m

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

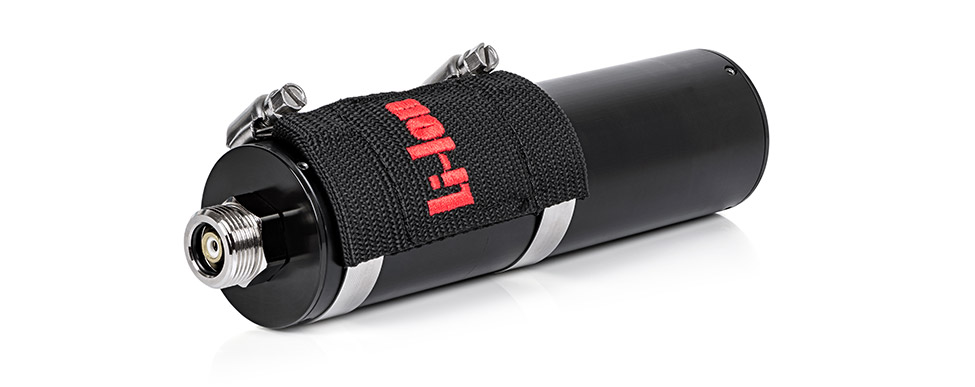

Accu XS 4.4Ah 14.4V

Description

Size

ACCU XS 4.4Ah is small and compact – great for recreational dives and for dives in remote locations when baggage weight is restricted. It comes equipped with high quality CE and UN 38.3 certified Li-Ion battery pack.

RCA connection

ACCU XS is equipped with one RCA connection point – used both for attaching one of light-for-me light heads and charging.

Simplicity

Maintenance of the ACCU XS is simple – clean and dry the RCA connection port, grease the oring inside the port if necessary and store it in a cool and dry place.

Durability

ACCU XS is made from aluminum and delrin. RCA port – stainless steel. This makes it able to withstand the usual diving conditions pre-, during and post-dive.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 4.4Ah
Charger microprocessor / 0.7A
Charging time up to 6h
Number of RCA ports 1
Dimensions 175mm (length) x 50mm (diameter)
Weight on the surface 810g
Weight underwater 760g
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

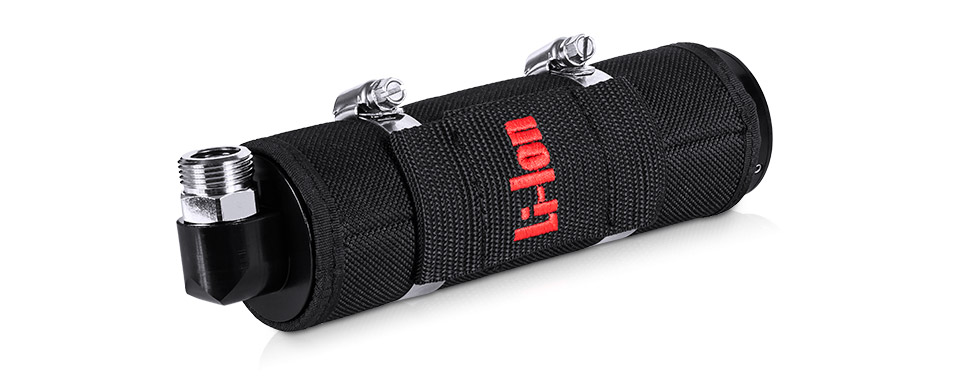

Accu XS 4.4Ah 14.4V Sidemount

Description

Size

ACCU XS Sidemount 4.4Ah is small and compact – great for recreational dives and for dives in remote locations when baggage weight is restricted. It comes equipped with high quality CE and UN 38.3 certified Li-Ion battery pack.

RCA connection

ACCU XS Sidemount is equipped with one RCA connection point – used for both attaching one of light-for-me light heads and charging. The RCA point is at 90 degrees, dedicated for Sidemount kit configuration.

Simplicity

Maintenance of the ACCU XS Sidemount is simple – clean and dry the RCA connection port, grease the oring inside the port if necessary and store it in a cool and dry place.

Durability

ACCU XS Sidemount is made from aluminum and delrin. RCA port – stainless steel. This makes it able to withstand the usual diving conditions pre-, during and post-dive.

Photos

Tech specification

To be used with 3XML Alexandra /
4TEC / 7XPE / NW7
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 4.4Ah
Charger microprocessor / 0.7A
Charging time up to 6h
Number of RCA ports 1 / 90-degree sidemount
Dimensions 175mm (length) x 50mm (diameter)
Weight on the surface 760g
Weight on the surface 760g
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

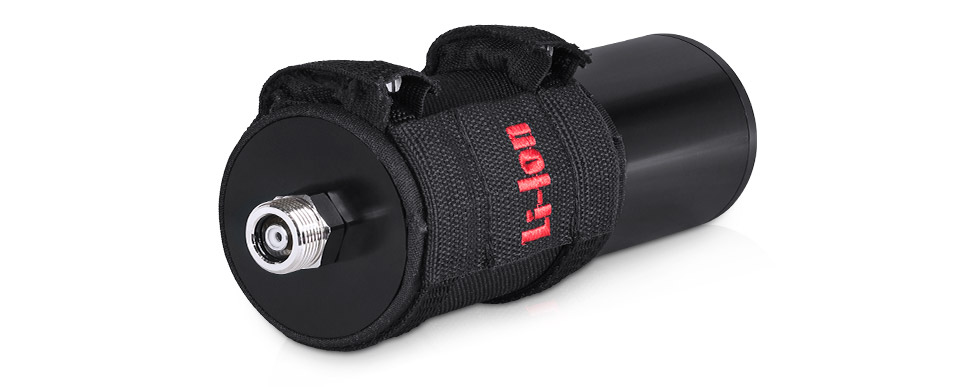

Accu S 8.6Ah 14.4V

Description

Size

It sits perfectly on harness, great for both recreational and technical divers. ACCU S weighs only 1.245kg so is great for travelling too. Now in a new, larger 8.6Ah capacity.

RCA connection

ACCU S is equipped with one RCA connection point – used both for attaching one of light-for-me light heads and charging.

Simplicity

Maintenance of the ACCU S is simple – clean and dry the RCA connection port, grease the oring inside the port if necessary and store it in a cool and dry place.

Durability

ACCU S is made from aluminum and delrin. RCA port – stainless steel. This makes it able to withstand the usual diving conditions pre-, during and post-dive.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 8.6Ah
Charger microprocessor / 2.8A
Charging time up to 2.5h
Number of RCA ports 1
Dimensions 190mm (length) x 75mm (diameter)
Weight on the surface 1.245kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

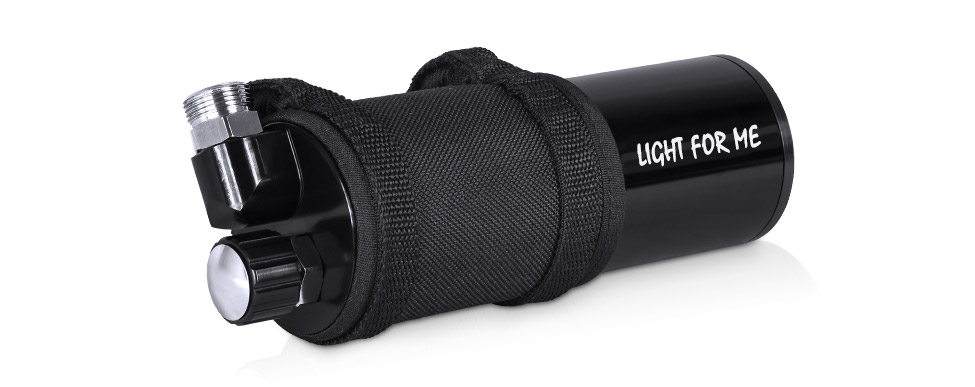

Accu S 8.6Ah 14.4V Sidemount Backmount

Description

Size

It sits perfectly on harness, great for both recreational and technical divers. ACCU S SMBM weighs only 1.245kg so is great for travelling too. Now in a new, larger 8.6Ah capacity.

RCA connection

ACCU S SM BM is equipped with two RCA connection ports, connected directly to the battery pack. One port is at 90 degree and is dedicated for sidemount divers. Each RCA port has one sealing oring. It comes with one RCA port cap – for the unused port.

Simplicity

Maintenance of the ACCU S SM BM is simple – clean and dry the RCA connection port, grease the oring inside the port if necessary and store it in a cool and dry place.

Durability

ACCU S SM BM is made from aluminum and delrin. RCA port – stainless steel. This makes it able to withstand the usual diving conditions pre-, during and post-dive.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 8.6Ah
Charger microprocessor / 2.8A
Charging time up to 2.5h
Number of RCA ports 2
Dimensions 190mm (length) x 75mm (diameter)
Weight on the surface 1.245kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

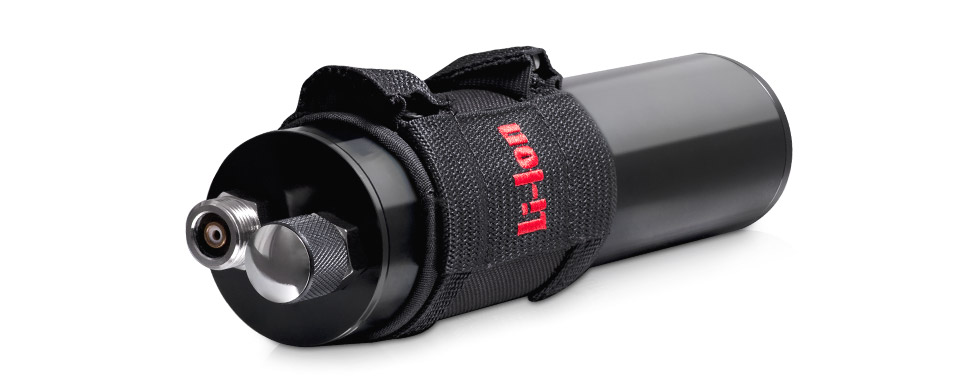

Accu M- 8.6Ah 14,4V

Description

Built

ACCU M- is made from anodised aluminum and delrin. RCA ports – stainless steel. It comes with protective codura sleeve and stainless steel jubilee clips.

RCA connection

ACCU M- is equipped with two RCA connection ports, connected directly to the battery pack. It comes with one RCA port cap.

Maintenance

Maintenance of the ACCU M- is simple – clean and dry the RCA connection ports, grease the sealing oring inside the ports if necessary and store it in a cool and dry place.

Durability

ACCU M- is great for divers doing more demanding dives that need more power for longer burn times. It is tough and reliable, able to withstand the usual diving codnitions.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 8.6Ah
Charger microprocessor / 2.8A
Charging time up to 4h
Number of RCA ports 2
Dimensions 280mm (length) x 75mm (diameter)
Weight on the surface 1.8kg
Weight underwater 1.5kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

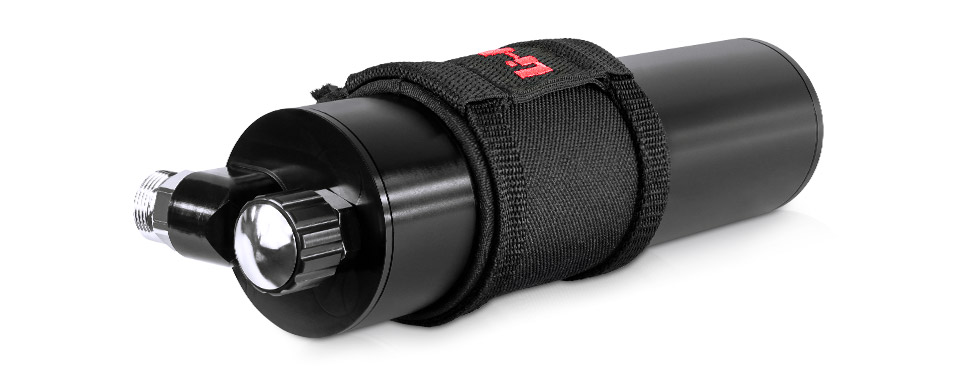

Accu M- 8.6Ah 14.4V Sidemount Backmount

Description

Built

ACCU M- is made from anodised aluminum and delrin. RCA ports – nickel plated brass. It is dedicated for divers with both backmounted and sidemounted dive gear configuration. It comes with protective codura sleeve and stainless steel jubilee clips.

Maintenance

Maintenance of the ACCU M- SM BM is simple – clean and dry the RCA connection ports, grease the sealing oring inside the ports if necessary and store it in a cool and dry place.

RCA connection

ACCU M- SM BM is equipped with two RCA connection ports, connected directly to the battery pack. One port is at 90 degree and is decdicated for sidemount divers. Each RCA port has one sealing oring. It comes with one RCA port cap – for the unused port.

Versatility

ACCU M- SM BM is great for technical divers who use Sidemount configuration, but also for those that use a traditional backmounted kit. It can be assembled on the harness with the use of provided strap but can also be easily assembled on the back pad with some bungees.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 8.6Ah
Charger microprocessor / 2.8A
Charging time up to 4h
Number of RCA ports 2
Dimensions 280mm (length) x 75mm (diameter)
Weight on the surface 1.9kg
Weight underwater 1.5kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

Accu M+ 12.2Ah 14,4V

Description

Built

ACCU M+ is made from anodised aluminum and delrin. RCA ports – stainless steel. It comes with protective codura sleeve and stainless steel jubilee clips.

RCA connection

ACCU M+ is equipped with two RCA connection ports, connected directly to the battery pack. It comes with one RCA port cap.

Maintenance

Maintenance of the ACCU M+ is simple – clean and dry the RCA connection ports, grease the sealing oring inside the ports if necessary and store it in a cool and dry place.

Durability

ACCU M+ is great for divers doing more demanding dives that need more power for longer burn times. It is tough and reliable, able to withstand the usual diving codnitions.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 12.2Ah
Charger microprocessor / 2.8A
Charging time up to 4h
Number of RCA ports 2
Dimensions 280mm (length) x 75mm (diameter)
Weight on the surface 1.8kg
Weight underwater 1.5kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

Accu M+ 12.2Ah 14.4V Sidemount Backmount

Description

Built

ACCU M+ is made from anodised aluminum and delrin. RCA ports – nickel plated brass. It is dedicated for divers with both backmounted and sidemounted dive gear configuration. It comes with protective codura sleeve and stainless steel jubilee clips.

Maintenance

Maintenance of the ACCU M+ SM BM is simple – clean and dry the RCA connection ports, grease the sealing oring inside the ports if necessary and store it in a cool and dry place.

RCA connection

ACCU M+ SM BM is equipped with two RCA connection ports, connected directly to the battery pack. One port is at 90 degree and is decdicated for sidemount divers. Each RCA port has one sealing oring. It comes with one RCA port cap – for the unused port.

Versatility

ACCU M+ SM BM is great for technical divers who use Sidemount configuration, but also for those that use a traditional backmounted kit. It can be assembled on the harness with the use of provided strap but can also be easily assembled on the back pad with some bungees.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 12.2Ah
Charger microprocessor / 2.8A
Charging time up to 4h
Number of RCA ports 2
Dimensions 280mm (length) x 75mm (diameter)
Weight on the surface 1.9kg
Weight underwater 1.5kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

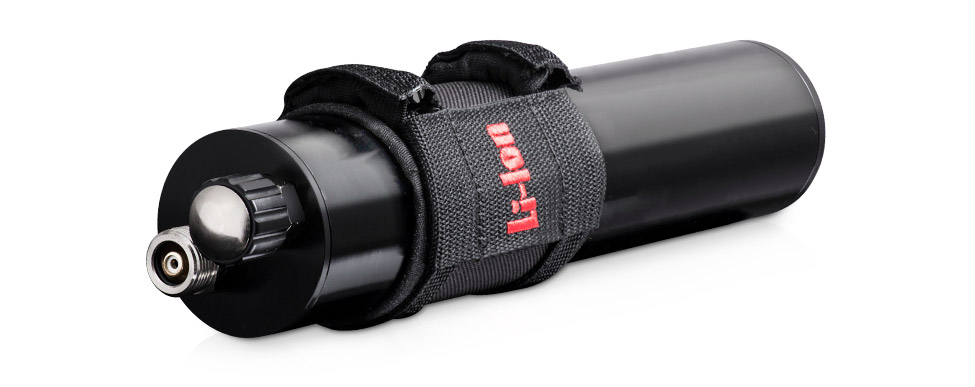

Accu L 22.5Ah 14.4V

Description

Built

ACCU L 22Ah is built from anodised aluminum (tube) and delrin (top and bottom lids). RCA ports are made from stainless steel. It comes with codura sleeve and covered stainelss steel jubilee clips for easy assembling on the harness.

RCA connection

ACCU L 22Ah is equipped with two RCA connection ports wired directly to the Li-Ion battery pack. It comes with one RCA port cap that protects the RCA port and battery pack if one port is unused.

Maintenance

ACCU L requires minimum but regular mentenance after diving. RCA ports need drying and sealing orings inside them need greasing.

Usage

ACCU L is dedicated for technical divers that require longer burn time for the demanding dives they do. Depending on the head connected it can provide up to 17h of burn time (when connected to 4TEC head- 100% power output)). It is tough and reliable, able to withstand the harsh pre-, during- and post-diving conditions.

Photos

Tech specification

To be used with 3XML Alexandra / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 14.4V
Battery pack capacity 22Ah
Charger microprocessor / 4.5A
Charging time up to 4h 50min
Number of RCA ports 2
Dimensions 320mm (length) x 75mm (diameter)
Weight on the surface 2.3kg
Weight underwater 2kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.

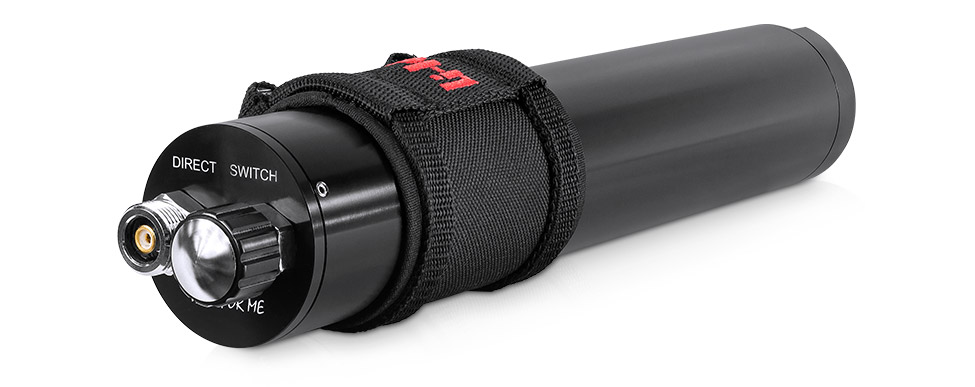

Accu Heat 18Ah 12V

Description

Built

ACCU HEAT 12V 18Ah is built from anodsied aluminum and delrin, RCA ports – nickel plated brass. Lithium-Ion battery pack has the mandatory CE and UN 38.3 certification. The set includes: codura protective sleeve with stainless steel jubilee clips, dedicated charger and one RCA port cap.

RCA ports

ACCU HEAT is equipped with two RCA ports – one connected directly to the batery pack, the other through a switch. The set includes one RCA port cap to be put on the unused port. Each RCA port has one sealing oring. Maintenance of RCA port is simple – clean and dry the RCA connection port, grease the oring inside the port if necessary and store it in a cool and dry place.

Switch

Switch of ACCU HEAt is placed on the bottom of the canister.
Easily accessible when assembled on the harness. Its built makes it easy to switch the accu on / off even in cold water when wearing gloves with thick lining.

Usage

ACCU HEAT is dedicated fro technical divers who want to connect their light-for-me RCA head (port direct) and compatible heating systems (port switch). ACCU HEAT 12V 18Ah is dedicated for SANTI™heating systems.

Photos

Tech specification

To be used with Santi™ heating systems / 4TEC /
7XPE / NW7 / TEK-ONE
Material anodised aluminium and POM
Max operating depth 100m
Battery pack type Lithium-Ion
Battery pack voltage 12V
Battery pack capacity 18Ah
Charger microprocessor / 2.8A
Charging time up to 6h
Number of RCA ports 2 (one direct / one switch)

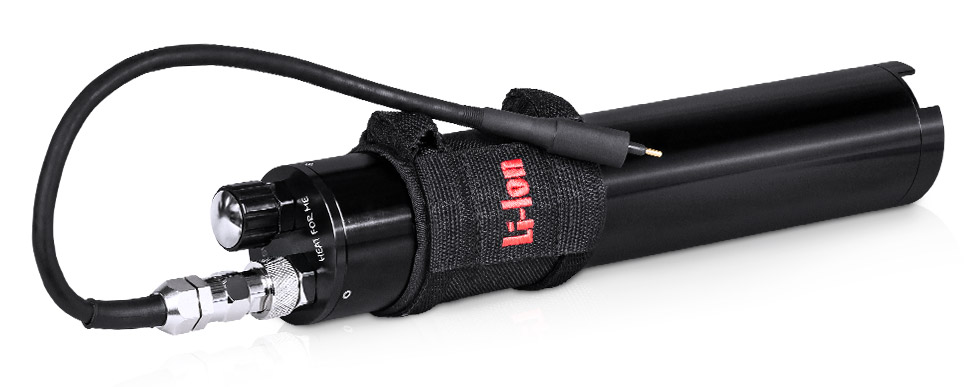

Cable 1 x E/O 45cm long
(available separately, not included in the set)
Dimensions 350mm (length) x 70mm (diameter)
Weight on the surface 2.45kg
Weight underwater 2kg
Certification UN38.3 and CE approved

Documentation

Availability

This product is available from our distributors or in our online store.

Click here to locate your local distributor.

Click here to view this product in our internet shop.

Click here to view this product in our internet shop for customers from Poland.
